DEPRECATED. PLEASE VISIT SLZB-06 WHICH IS EVEN MORE BETTER:
Dear customers! We will sell the remaining devices WITHOUT CARDBOARD PACKAGING
Antenna color is white or black, will be sent randomly.
FOR INTERNATIONAL SHIPMENT (WORLDWIDE):
- AVIA+TRACKING NUMBER! If you need international delivery (outside Ukraine) - choose the currency to US dollars (upper right side), and during the checkout fill in the delivery address, make payment online and that is it. We have shipped to 55+ countries all over the world;
- We also speak English by any means of communication - phone, Viber, Whatsapp, Telegram, email (see contacts at the top of the page).
- powering by micro-USB or type-C with the connector that comes with the adapter;
- CC2652P chip with +20dB amplifier
- 6dB antenna included;
- paper box, safe delivery to your country;
- flashing Zigbee and ESP over LAN;
- each device individually tested before shipment;
Zigbee LAN coordinator SLZB-05 based on CC2652P (Ebyte E72-2G4M20S1E module) from SMLight is a TCP / IP Zigbee coordinator used to control Zigbee devices in smart home systems using the zigbee2mqtt application.
The Zigbee LAN coordinator allows you to solve several issues:
- Free choice of the coordinator's location. The location of the coordinator is independent of the server and may be away from the server;
- Proportionally increasing the maximum number of Zigbee devices on the network. The number of possible devices operating in the smart home system is proportionally increased by the number of coordinators. One CC2652P module can connect about 150 devices. Two CC2652P modules will already connect 300 devices;
- Reliable expansion of Zigbee network coverage. If you have a large area that needs to be covered by a Zigbee network, trusting only devices in router mode is not as secure as trusting an additional LAN coordinator. Because any failure or disconnection of the Zigbee router will disable the devices for which it was triggered by the connecting element. Thus, it is possible to connect even remote, unrelated objects, for example, different apartments, houses, a house, a garage, etc. to one server;
The coordinator is delivered ready to go. Flashed:
- Zigbee part: with firmware or from @Koenkk (Koen Kanters) https://github.com/Koenkk/Z-Stack-firmware/tree/master/coordinator or from @Egony (Alex Egony) (https://github.com/egony/cc2652p_E72-2G4M20S1E/tree/master/firmware/coordinator). Supplied by default with firmware from Koenkk.
- ESP/LAN part: with firmware built on the basis of ESPHome https://www.esphome.io/.
- Zigbee LAN coordinator SMLIGHT SLZB-05;
- Antenna 6dB;
- Connector type-C to micro-USB;
- The backdoor bootloader is opened, so the SLZB-05 can be flashed/updated over LAN.
- For more information about Zigbee2Mqtt please visit http://zigbee2mqtt.io.
HOW TO START:
- Plug LAN cable and micro-USB power to the adapter;
- Get to know the IP address of the SLZB-05 (fastest - have a look at your router software, or just scan your local network);
- Within your ZIGBEE2MQTT configuration define SLZB-05 adapter as follows:
- Run ZIGBEE2MQTT
- Enjoy your Zigbee to LAN gateway
- choice №1 of USA customers and liked by many other countries!;
- out of the box works with zigbee2mqtt - just plug&play; flashed with the latest firmware;
- micro-USB OR type-C powered;
- 6dB antenna included for long and wide area coverage and BEST link quality (lqi)!!;
- CC2652P based latest powerful chip-based;
- fast <48 hours order processing time;
- fast delivery with tracking number, USA - 6-10 days (France, South Korea, Norway, Finland, Great Britain, Germany, Netherlands, Poland, Belgium, Czech Republic, Cyprus, Denmark, Estonia, Hungary, Japan, Spain, Switzerland, Izrael, Singapore, UAE, Greece, Italy, Slovakia, ~10 days);
- the firmware could be updated in 5 easy steps (described below)
FAST SHIPPING AND POSITIVE FEEDBACK!!
SUPERFAST DELIVERY TO MANY COUNTRIES (6-14 days)
Sometimes we are getting extremely fast shipments, examples for AUGUST 2021:
- USA - shipped on 16 Aug, delivered on 23 Aug, https://track.ukrposhta.ua/tracking_EN.html?barcode=RF064676978UA;
- Finland - shipped on 27 Aug, delivered on 31 Aug (4 days!!!) - https://track.ukrposhta.ua/tracking_EN.html?barcode=RF065434624UA;
- France - shipped on 24 Aug, delivered on 30 Aug - https://track.ukrposhta.ua/tracking_EN.html?barcode=RF065176973UA;
- Belgium - shipped on 26 Aug, delivered on 02 Sep - https://track.ukrposhta.ua/tracking_EN.html?barcode=RF065307807UA;
- Great Britain - shipped on 19 Aug, delivered on 27 Aug - https://track.ukrposhta.ua/tracking_EN.html?barcode=RF064791148UA;
- Singapore - shipped on 10 Aug, delivered on 18 Aug - https://track.ukrposhta.ua/tracking_EN.html?barcode=RF064105145UA;
- South Korea - shipped on 22 Aug, delivered on 03 Sep - https://track.ukrposhta.ua/tracking_EN.html?barcode=RF065054405UA;
- New Zealand - - shipped on 11 Aug, delivered on 26 Aug - https://track.ukrposhta.ua/tracking_EN.html?barcode=RF064311155UA;
Official data from Ukraine's postal service about delivery time:
WHERE OUR CC2652P ADAPTERS WORK AMONG CITIES IN THE MOST POPULAR COUNTRIES:
UNITED STATES OF AMERICA - SMARTLIGHT'S ZIGBEE COORDINATOR
- CHOICE №1 OF USA CUSTOMERS
UNITED STATES OF AMERICA
A. PRODUCTION PROCESS:
1. PCB preparation and Components soldering
We are operating an in-house soldering machine with the operator. This process is made at our production facilities in Kyiv, Ukraine.
The picture is clickable - follows to video on Youtube
2. Flashing the devices
Each device passes bootloader unblocking and flashing with the latest Zigbee stack firmware. Bootloader unblocking allows customers to update firmware later with no additional hardware like programmer etc - just a laptop with USB will need.
B. ORDER PROCESSING

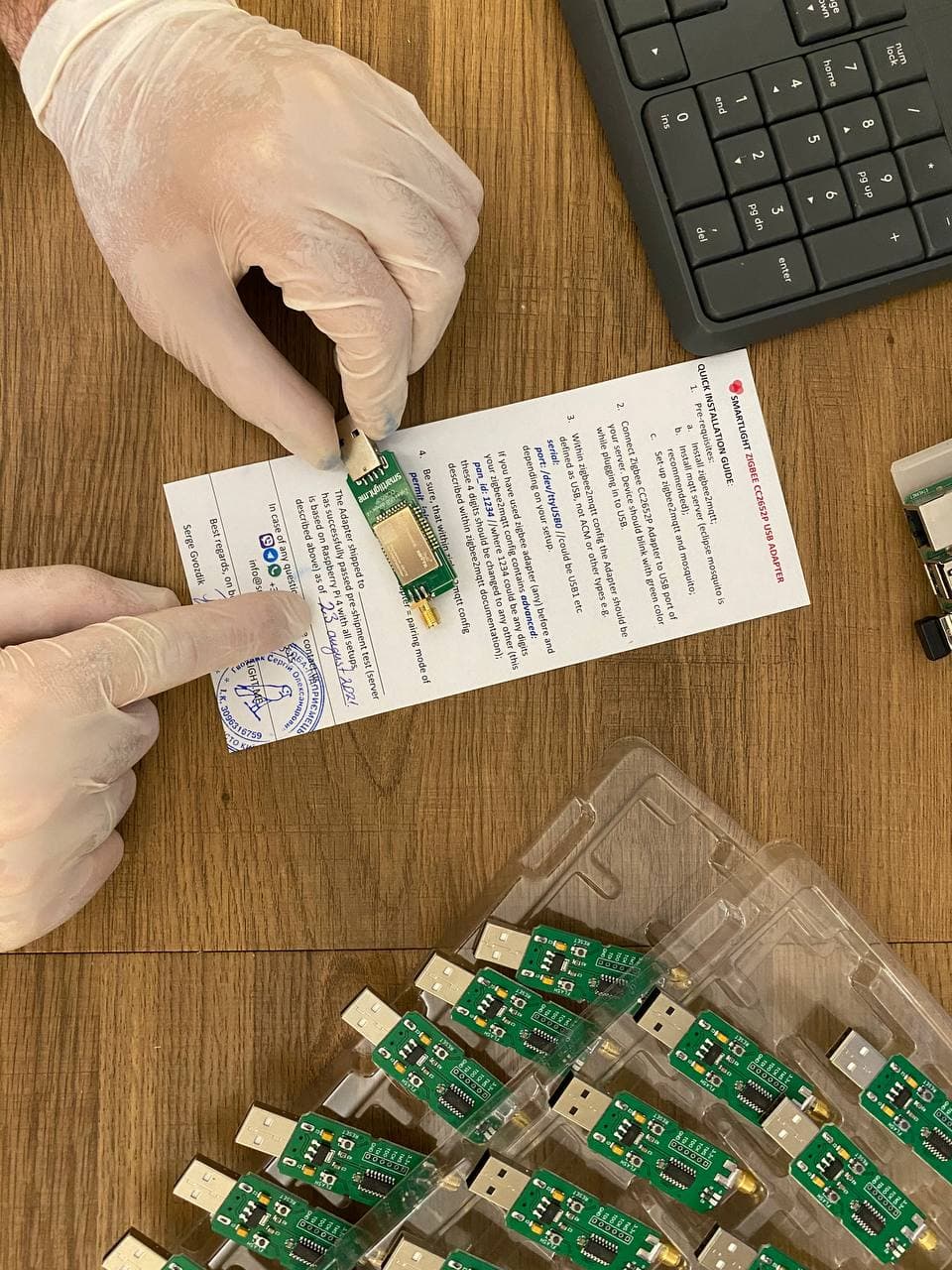

3. Testing the devices + test certificate preparation;
Each device is tested manually before shipment to customer with the following process:
- connecting to test server (zigbee2mqtt + mqtt-brocker + home assistant, runed on Raspberry Pi 4)
- connection to CC2652P coordinator 3 Zigbee devices (2x end devices + 1x router)
- checking that test devices can be connected to CC2652P coordinator, controlled and devices report their data to Home Assistant;
- signing and sealing the certificate confirmed that all tests passed successfully.
Each item is individually packed which prohibits damage during the shipment. Packing includes
- polyethylene film to prevent scratches,
- bubble wrap, and
to prevent physical damages;
We are making shipments usually in 48 hours from the order day with some minor exceptions
- Firmware module: latest, to support all zigbee2mqtt devices;
- 6 dB antenna;
- Debug interface: 1 (jtag);
- Size: 70X30X30mm, antenna length 200mm;
- The bootloader is unlocked for firmware via LAN:
- Two LEDs for interaction with the user
project was made based on the following projects:
For anyone looking for a good zigbee coordinator I highly recommend this product. In general I highly recommend this shop :-)
Worked out of the box with home assistant using zigbee2mqtt. Device is well put together and sturdy. Works well with a PoE splitter making it a true one cable solution.
Is the SLZB-06 firmware also usable on the SLZB-05?
It looks really nice and much more comfortable than the SLZB-05 web frontend :-)
The SLZB-06 firmware in its stock is not compatible with SLZB-05 but you can adapt it and compile the version for SLZB-05. The source code of the firmware is open
Thank you for preordering SLZB-05! Unfotenly it not will be available, we release a new version SLZB-06, check it out https://smartlight.me/smart-home-devices/zigbee-devices/smlight-slzb-06en
На жаль дану модель знято з виробництва. Ми випустили нову модель, ви можете перевірити її за посиланням https://smartlight.me/smart-home-devices/zigbee-devices/smlight-slzb-06en
