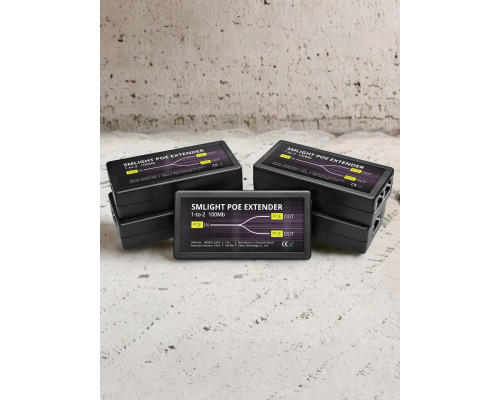

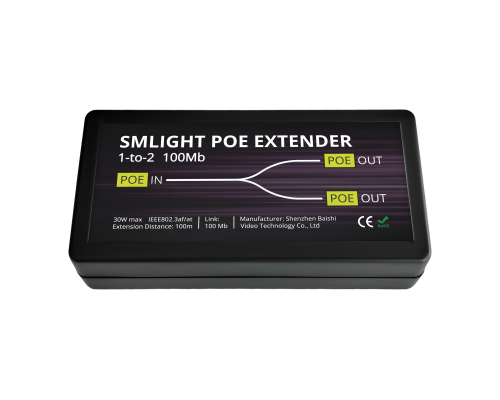

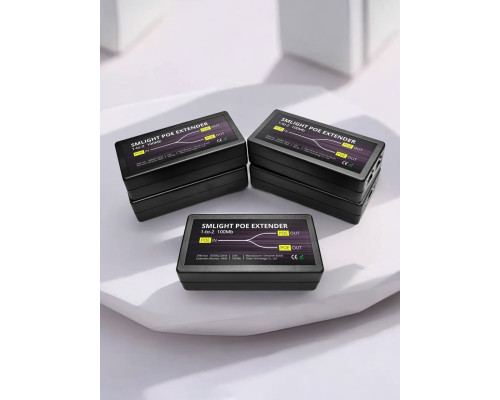

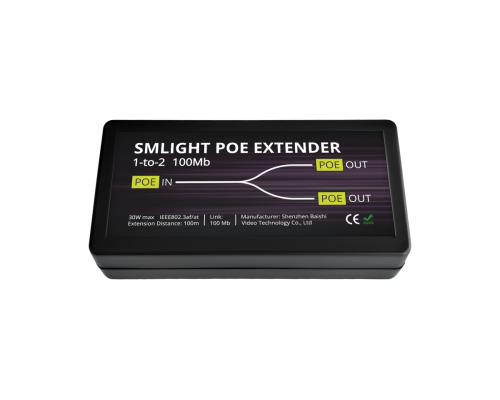

POE Extender 1-to-2 100Mb

PoE Extender – 2-Port IEEE 802.3af-Compliant

Industrial-grade PoE extender designed to extend both data and power over Ethernet for an additional 100 meters. Engineered for high compatibility with IEEE 802.3af devices, it allows flexible expansion of PoE networks in smart home, commercial, or surveillance deployments.

Perfect for use with SMLIGHT SLZB-06 series Zigbee coordinators (powered via PoE) and PoE-powered devices like IP cameras, access points, and VoIP phones.

Technical Highlights

• Compliant with IEEE 802.3af PoE standard

  • Fully supports 10/100 Mbps Ethernet

  • Auto-sensing PoE compatibility ensures safe operation

• Power Input: 1× PoE-in port (IEEE 802.3af, max. 13W)

• Power Output: 2× PoE-out ports (combined max. 12.2W)

  • Example 1: 2× SMLIGHT SLZB-06 PoE Zigbee coordinators

  • Example 2: 1× SLZB-06 + 1× standard PoE IP camera

• Data Transmission: Up to 100 meters (Cat5e or higher recommended)

• Ports:

  • 1× 10/100Mbps PoE IN (uplink)

  • 2× 10/100Mbps PoE OUT (downlink)

• Plug & Play: No configuration required; fully automatic negotiation and detection

• Surge Protection: Integrated PoE safety mechanisms to prevent reverse wiring damage

• Installation: Passive design, requires no external power supply (powered via PoE input)

• Casing: Compact, fanless metal or ABS housing (model-dependent)

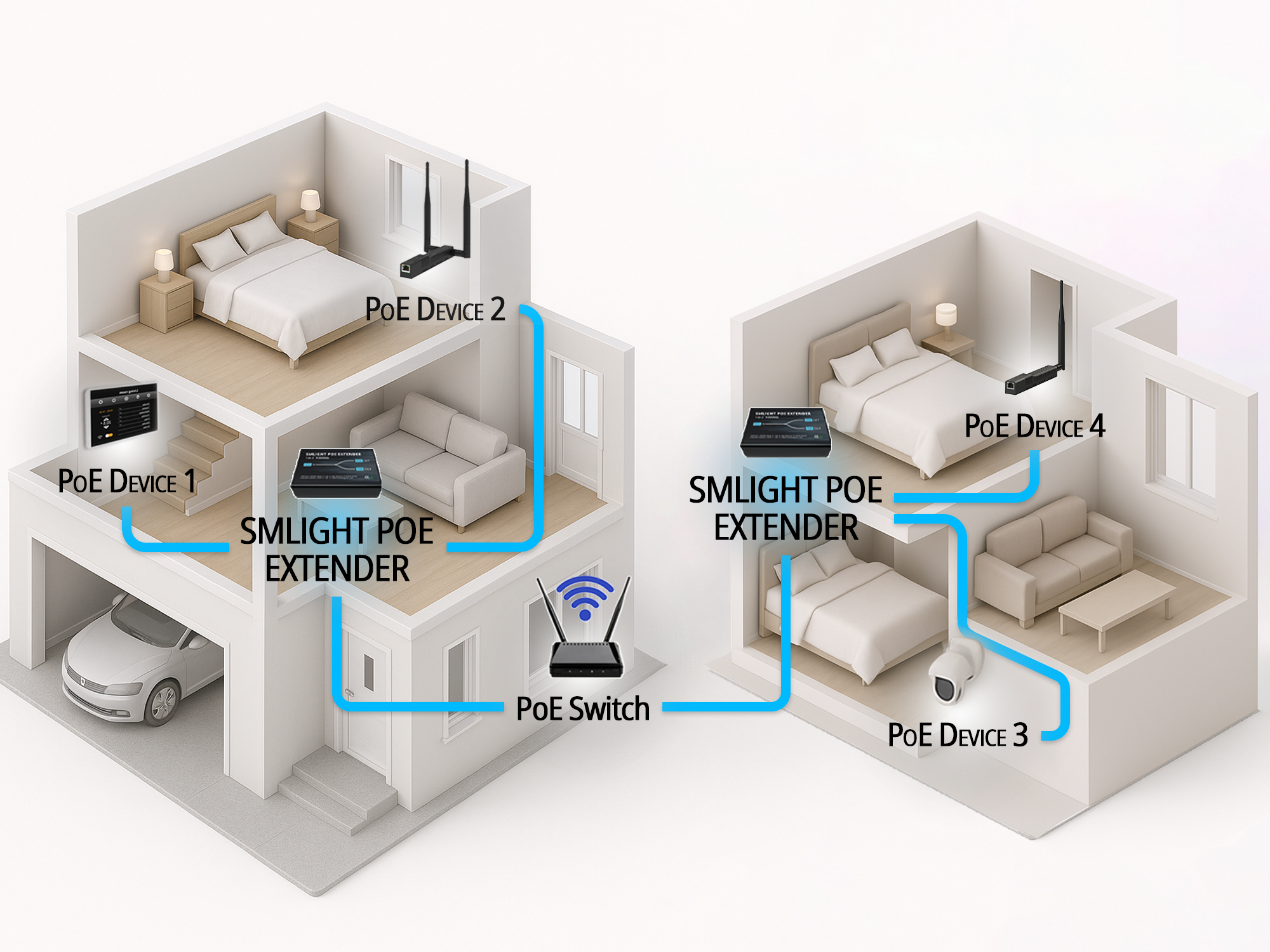

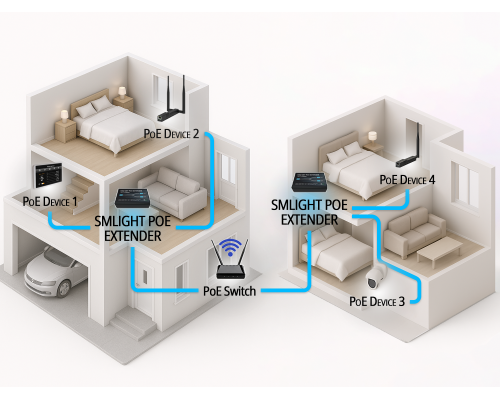

• Use Case Scenarios:

  • Smart home hubs, SLZB-06 PoE coordinator deployments

  • IP camera and VoIP installations in extended or distributed sites

  • Expansion in environments lacking power infrastructure: schools, hotels, residential buildings, or outdoor kiosks

• Environment:

  • Operating temperature: -10°C to 50°C

  • Humidity: 10%–90% non-condensing
