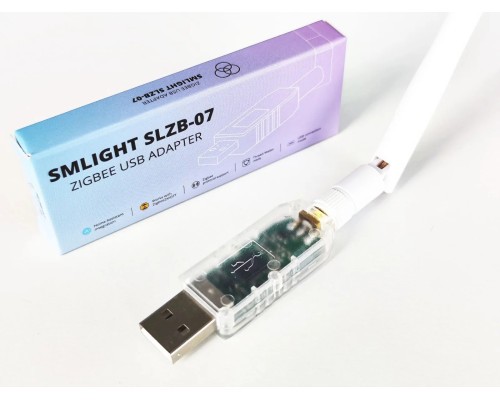

USB Zigbee/Thread stick · SMLIGHT
SLZB-07x.
The smallest way to add Zigbee to your server.
SLZB-07x by SMLIGHT is a compact USB stick that connects your Zigbee or Thread network directly to your smart home server. It is simply a radio chip behind a USB converter in a compact enclosure with an antenna. Plug it into a port — and it works.
The series consists of five models with the same enclosure and USB bridge — only the radio chip inside differs. First, what the device does, then which model to choose.
What it does
|
Zigbee coordinator or router
Manages your Zigbee network directly out of the box — compatible with Zigbee2MQTT and ZHA, with no additional drivers.
|
Thread/Matter radio
On compatible chips, it works as a Thread radio for a Matter-over-Thread border router in Home Assistant.
|
Plug-and-play, no cables
Comes pre-flashed. No toolchain or flashing cable is needed to get started — just a USB port.
|
|
Compact size — 54 × 18 × 10 mm
The smallest USB Zigbee stick in the SMLIGHT lineup with an external antenna. The slim enclosure does not block neighboring ports on a server or USB hub.
|
||
Ideal for
Your first Zigbee stick for Home Assistant or as a replacement for an old CC2531/CC2652 dongle. | A server, mini-PC or Raspberry Pi, where the device plugs directly into a port. | Multiple coordinators on one server for different rooms or networks. |

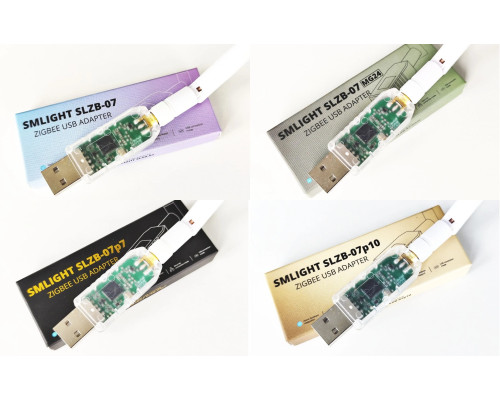

Choose a model
Everything is the same except the radio chip
| Model | SLZB-07 MAINSTREAM |

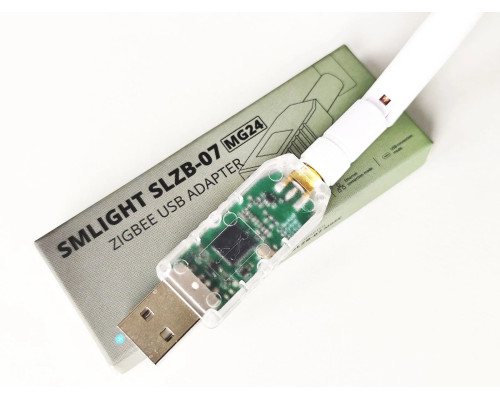

SLZB-07Mg24 MG24 |
SLZB-07Mg26 PREMIUM |

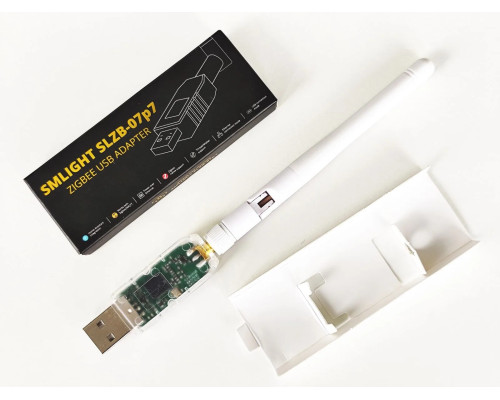

SLZB-07p7 TI EXTENDED |

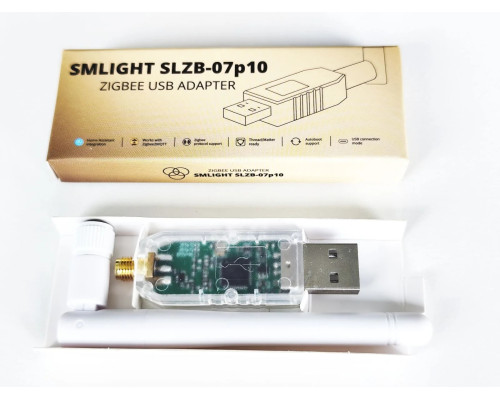

SLZB-07p10 TI RECOMMENDED |
| Radio chip | EFR32MG21 | EFR32MG24 | EFR32MG26 | CC2652P7 | CC2674P10 |
| Vendor | Silicon Labs | Texas Instruments | |||
How to get started
|
01
Connect to a USB port
Server, mini-PC, Raspberry Pi, or NAS — any available USB-A port. No drivers required.
|
02
Select the dongle in the software
Zigbee2MQTT, ZHA, or the Thread integration will automatically detect the device on its serial port.
|
03
Done
The network is ready. Radio chip firmware can be updated remotely through access to the server.
|
Key hardware features
|
Built-in +20 dB amplifier
Together with the external antenna, it covers remote corners without a USB extension cable.
|
Rotatable +3 dB antenna
External, with 3-axis adjustment — point it toward the network rather than the server wall.
|
4-layer PCB
Isolates the radio chip from USB bus and neighboring device interference — maintaining the connection even in dense server racks.
|
|
USB-powered
No separate power supply is required — the device is powered from the same USB-A port.
|
Exposed pin headers
Exposed radio chip pins for DIY flashing, debugging, and custom firmware.
|
Compact enclosure
54 × 18 × 10 mm — does not occupy the neighboring port on a dense board or USB hub.
|
Firmware features
|
Remote radio chip updates
The radio firmware can be updated remotely with access only to the host server — without physical access to the device.
|
Multiple coordinators on one server
Connect multiple SLZB-07x devices to one server — for separate Zigbee networks or extended coverage with multiple coordinators.
|
Autoflash on Silicon Labs models
EFR32 variants (07, 07Mg24, 07Mg26) support USB flashing without additional cables or a toolchain.
|
Compatibility

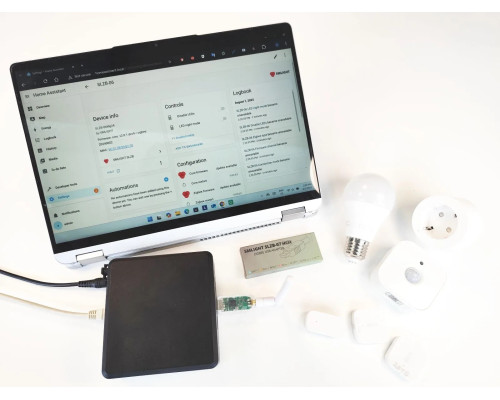

Tested and verified
| Zigbee | Zigbee2MQTT, ZHA — coordinator or router mode, out of the box. |
| Thread / Matter | On compatible chips — via the Thread/OTBR add-on for Home Assistant. |
| Hardware | Servers, mini-PCs, Raspberry Pi, Synology NAS — any USB-A port. |
Technical specifications
| Type | USB Zigbee/Thread coordinator, series with 5 chip variants |
| Radio chip | EFR32MG21 / EFR32MG24 / EFR32MG26 / CC2652P7 / CC2674P10 — depending on the model (see the table above) |
| Connection | USB-A, powered from the same port |
| Ethernet / Wi-Fi / PoE | None — direct USB connection only |
| Antenna | External, +3 dB, rotatable (3-axis), +20 dB amplifier on the board |
| Web interface / SLZB-OS | None — configuration through host software (Zigbee2MQTT, ZHA) |
| Dimensions | 54 × 18 × 10 мм |
