$42.99

This product is also available with international delivery -  Limited 5-day promotional pricing on AliExpress: as low as 38.85 EUR including shipping (+ taxes) on AliExpress: [Link-1].  [Link-2]

---------------------------------------------------------------------------------------------------------------------------------

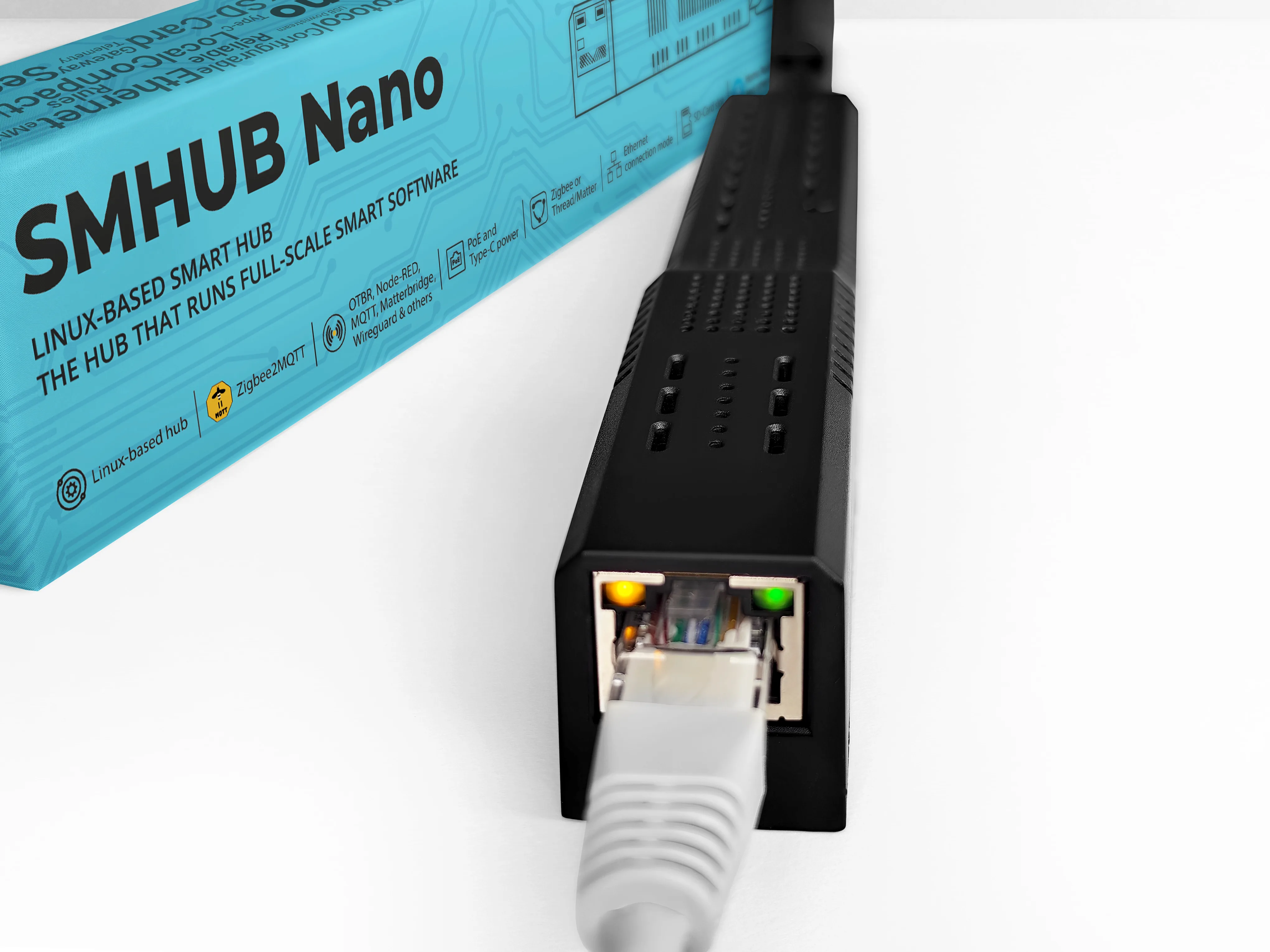

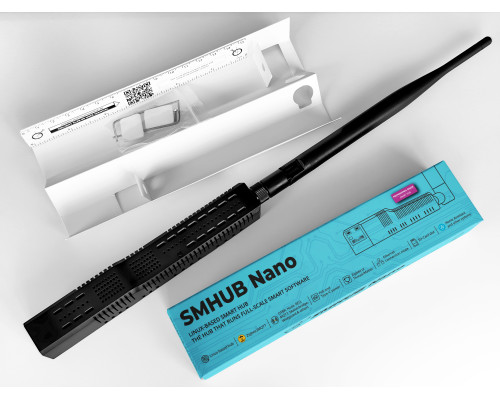

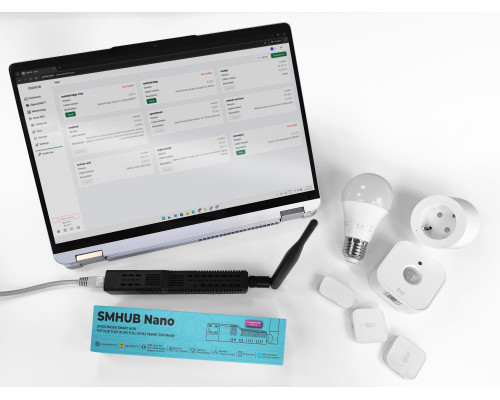

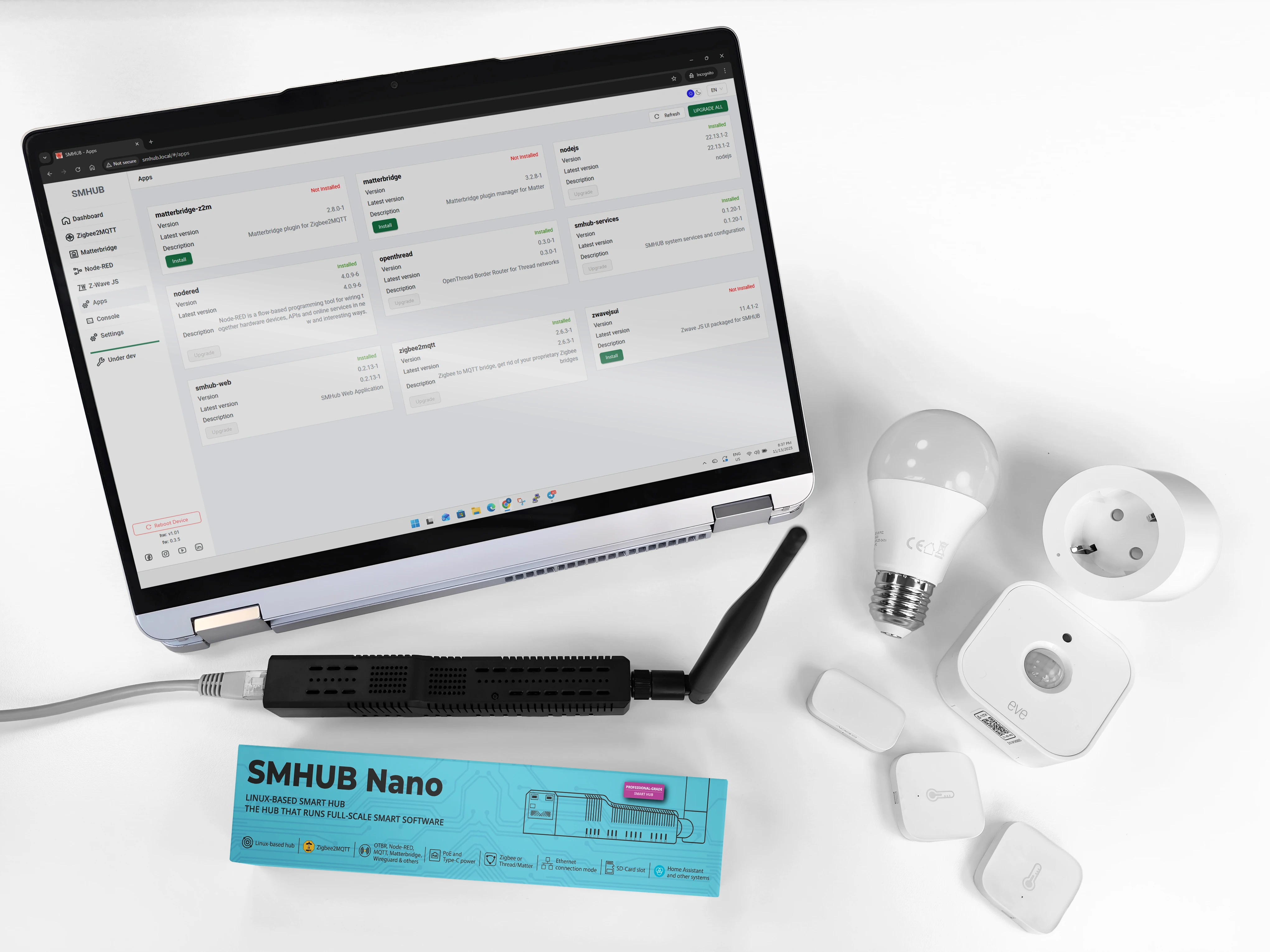

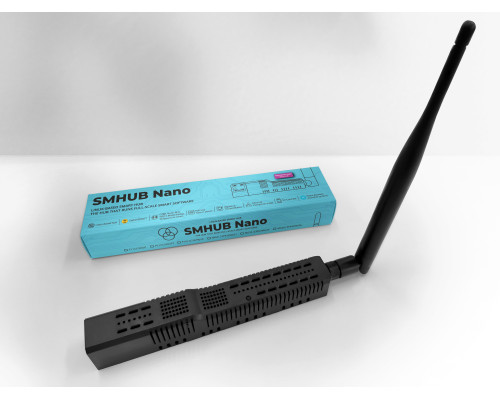

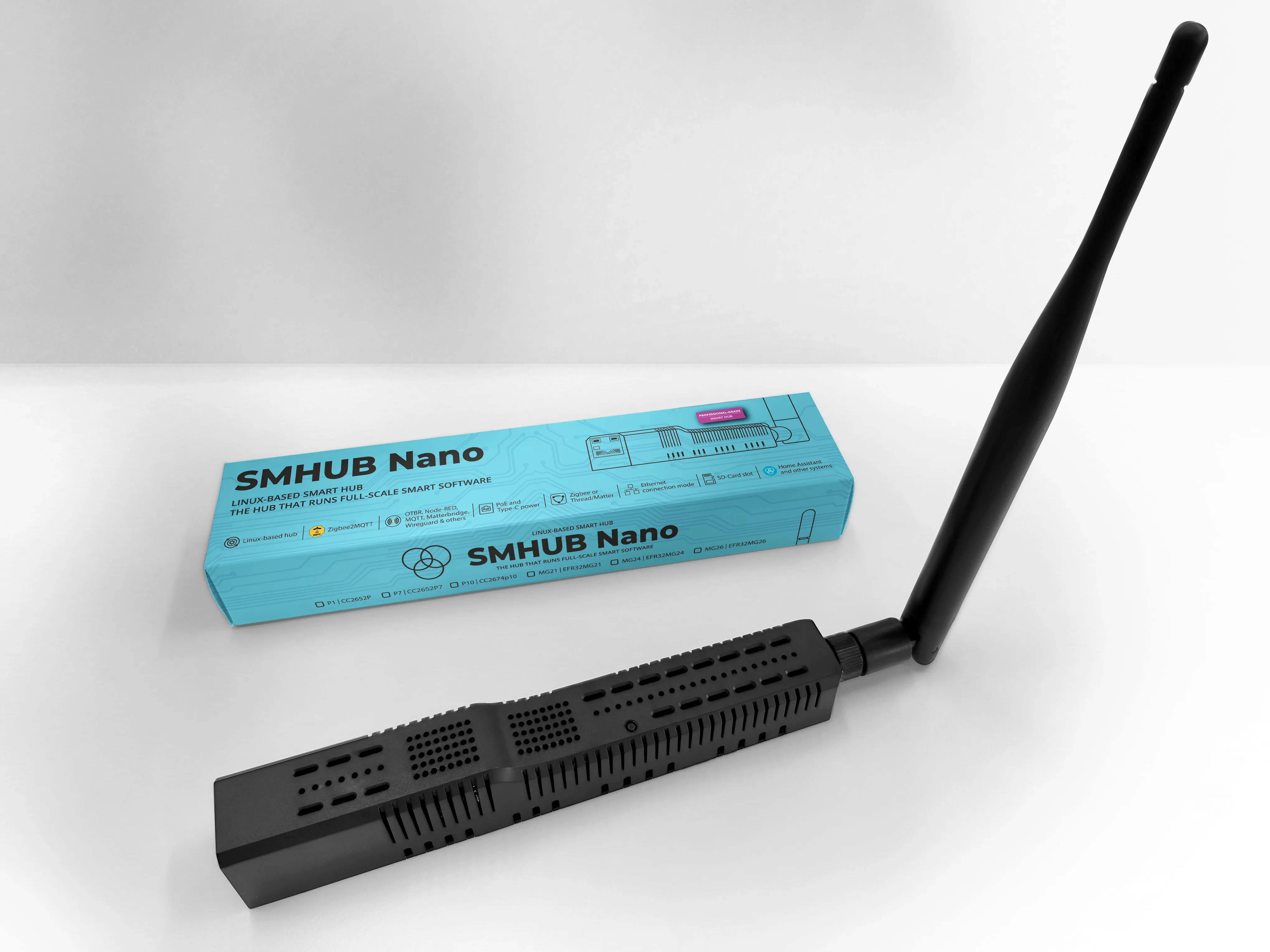

SMHUB Nano Mg24 - Compact Linux-Based Smart Hub with On-Device Automation



The SMHUB Nano Mg24 is a compact, silent, Linux-based smart hub designed to run all automation software directly on the device itself - no external computer, no Raspberry Pi, and no cloud required.

With its powerful MG24 radio and the SMHUB-OS platform, it can independently host Zigbee2MQTT, Matterbridge, Node-RED, MQTT Mosquitto broker, WireGuard, and other automation tools.
This makes the Nano Mg24 a fully self-contained automation controller perfect for residential, commercial, and embedded integration projects.




⭐ Key Capability — Fully Local Automation (Runs Everything On-Device)

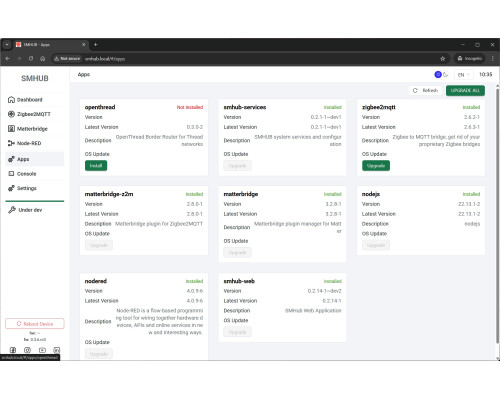

The SMHUB Nano Mg24 executes all core automation applications natively on its internal Linux system, including:

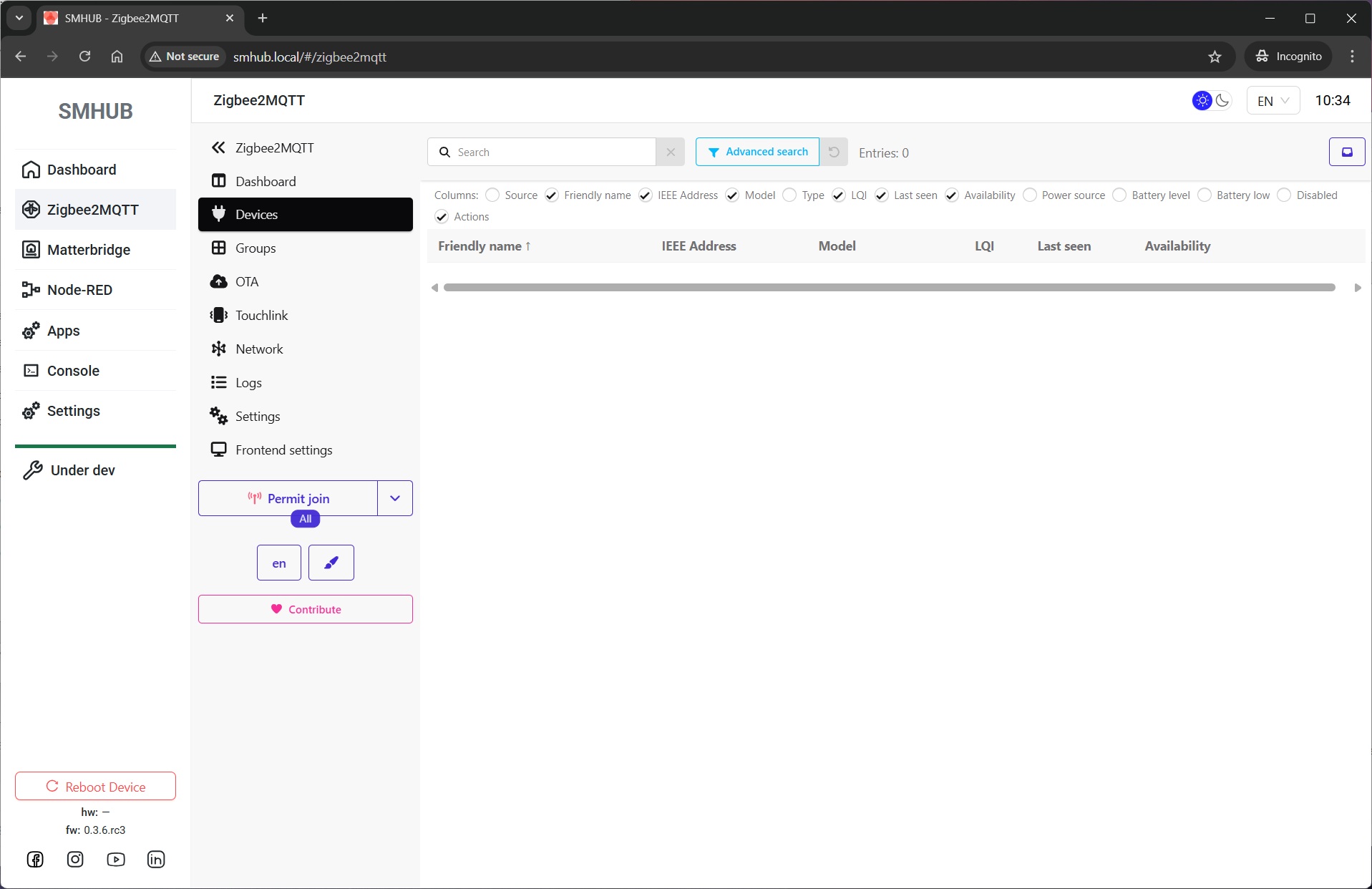

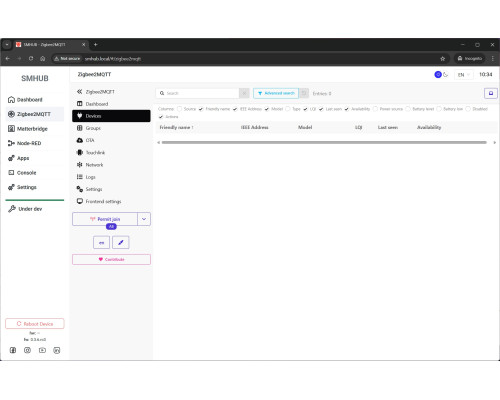

  • Zigbee2MQTT → allows pairing and controlling Zigbee devices locally

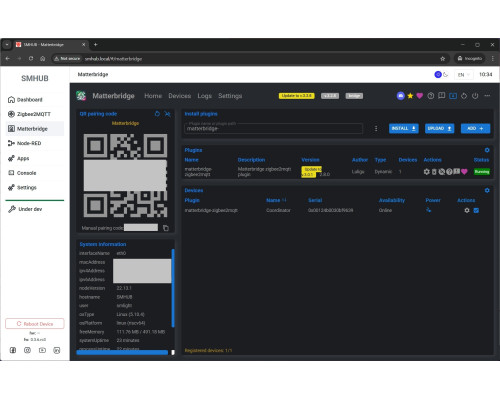

  • Matterbridge → exposes Zigbee devices to Google Home and Apple Home (HomeKit)

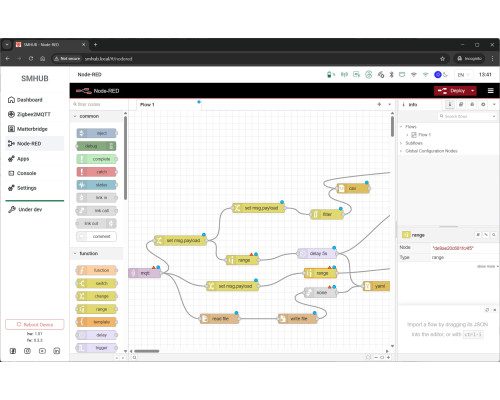

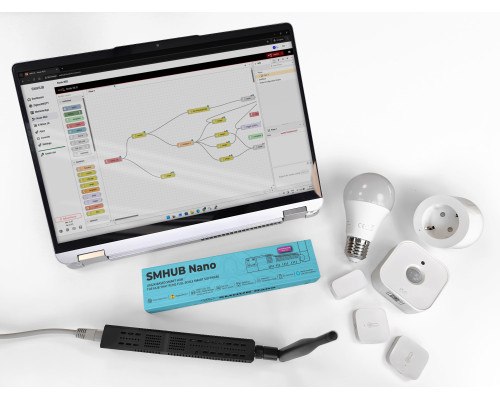

  • Node-RED → local automation logic, flows, and integrations

  • Mosquitto MQTT Broker → local messaging backbone

  • WireGuard → secure remote access and VPN tunnels

  • OpenThread tools

  • NodeJS & Python for custom scripts and extensions

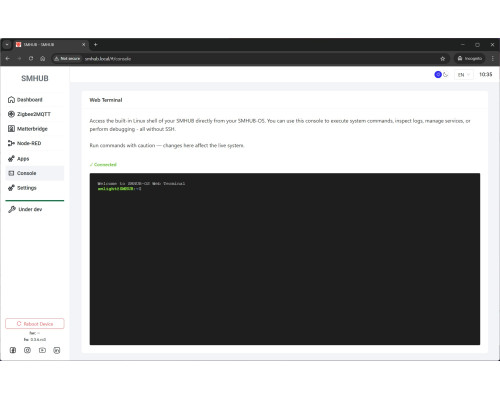

  • any other apps (console access)

Nothing needs to run on your computer or a separate hub.
The SMHUB Nano is the hub.



Wireless & Connectivity

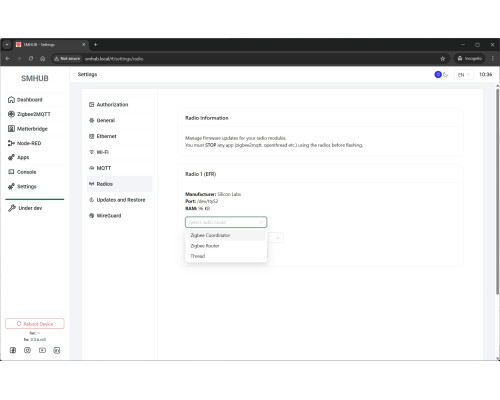

  • Primary Radio: EFR32MG24 (Zigbee or Thread/Matter capable)

  • Dual-band Wi-Fi: 2.4 GHz and 5 GHz

  • Bluetooth: integrated

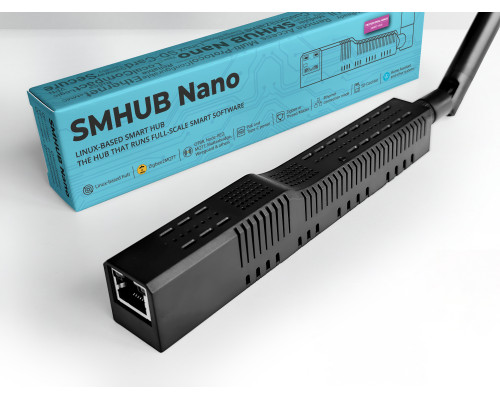

  • Ethernet: 100 Mb LAN port

  • Triple-radio design → Zigbee/Thread + Wi-Fi + Bluetooth


Power Options

  • PoE (via PoE splitter) - ideal for wall, ceiling, cabinet, or enterprise installations
  • USB-C (5 V) - independent additional power input

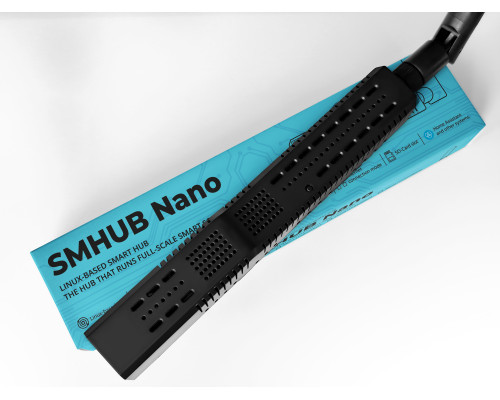

Physical Features

  • Fanless and silent

  • Compact installation-friendly enclosure

  • Status LEDs for system, networking, and radios

  • Management button for resets and custom commands

  • microSD slot for additional storage or logs


Use Cases

  • Fully local Zigbee control with Zigbee2MQTT

  • Bridging Zigbee devices to Google Home / Apple Home

  • Local automation server using Node-RED

  • Local IoT backbone with MQTT

  • Secure remote operation through WireGuard

  • OEM and embedded IoT projects

  • Office, hotel, multi-unit residential automation

  • System integrators needing a compact Linux controller


Why Choose SMHUB Nano Mg24?

  • All automations run natively on the device (no external hub required)

  • Strong MG24 radio for Zigbee and Thread/Matter

  • Small, silent, efficient

  • Developer-friendly with SSH

  • Easy OTA maintenance

  • Flexible powering (USB-C / PoE)

  • Suitable for consumer and enterprise environments
